9. Convergence for an Elliptic Orbit

9.1. Adding a Counter

Carol: Yes, let's go to smaller steps, but I'm worried about one thing, though. Each time we make the steps ten times as small, we are generating ten times more output. This means a ten times larger output file, and ten times more points to load into our graphics figure. Something tells me that we may have to make the steps a hundred times smaller yet, to get reasonable convergence, and at some point we will be running into trouble when we start saving millions of points.

Let's check the file size so far:

 |gravity> ls -l euler_elliptic_10000_steps.out
 -rw-r--r--    1 makino   makino     854128 Sep 14 08:04 euler_elliptic_10000_steps.out
Dan: I see, almost a Megabyte. This means that a thousand times smaller step size would generate a file of almost a Gigabyte. That would be overkill and probably take quite a while to plot. I guess we'll have to prune the output, and only keep some of the points.

Erica: Good idea. A natural approach would be to keep the same number of points as we got in our first attempt, namely one thousand. In our next-to-last plot, figure 22 you could still see how the individual points were separated further from each other at the left hand side, while in our last plot, figure 23, everything is so crowded that you can't see what is going on.

Dan: What do you mean with `going on'?

Erica: In figure 22, on the left hand side, you can see that the individual points are separated most when the particles come close together. This means that the particles are moving at the highest speed, which makes sense: when two particles fall toward each other, they speed up. As long as we stick to only a few hundred points per orbit, we will be able to see that effect nicely also when we reach convergence in more accurate calculations.

Carol: I see. That makes sense. I'd like to aks you more about that, but before doing so, let's first get the pruning job done, in order to produce more sparse output. I will take our last code, from euler_elliptic_10000_steps.rb, and call it euler_elliptic_10000_steps_sparse.rb instead. Yes, Dan, you can later copy it into ee1s.rb, if you like. How to prune things? We have a time step of dt = 0.001 that is ten times smaller than our original choice, and therefore it produces ten times too many points.

The solution is to plot only one out of ten points. The simplest way I can think of is to introduce a counter in our loop, which keeps track of how many times we have traversed the loop. I will call the counter i:

 10000.times{|i|

Erica: what do the vertical bars mean?

Carol: That is how Ruby allows you to use a counter. In most languages, you start with a counter, and then you define the looping mechanism explicitly by using the counter. For example, in C you write

 for (i = 0; i < imax; i++){ ... }
which defines a loop that is traversed imax times. Ruby is cleaner, in the sense that it allows you to forget about such implementation details. The construct

 imax.times{ ... }
neatly takes care of everything, while hiding the actual counting procedure. However, if you like to make the counter visible, you can do so by writing:

 imax.times{|i| ... }
where i, or whatever name you like to choose for the variable, will become the explicit counter.

9.2. Sparse Output

Dan: So now we have to give the print statements a test which is passed only one out of ten times.

Carol: Exactly. How about this?

   if i%10 == 0
     print(x, "  ", y, "  ", z, "  ")
     print(vx, "  ", vy, "  ", vz, "\n")
   end

Here the symbol % gives you the reminder after a division, just as in C.

Dan: So when you write 8%3, you get 2.

Carol: Yes. And the way I wrote it above, i%10, will be equal to zero only one out of ten times, only when the number i is a multiple of ten, or in decimal notation ends in a zero.

Dan: Okay, that's hard to argue with. Let's try it. Better make sure that you land on the same last point as before. How about running the old code and the new sparse code, and comparing the last few lines?

Carol: Good idea. After our debugging sessions you've gotten a taste for testing, hey? You'll turn into a computer scientist before you know it! I'll give you what you ordered, but of course there is hardly anything that can go wrong:

 |gravity> ruby euler_elliptic_10000_steps.rb | tail -3
 2.01466014781365  0.162047884550843  0.0  -0.152387493429476  0.258735730522888  0.0
 2.01450776032022  0.162306620281366  0.0  -0.152631496539003  0.258716104290758  0.0
 2.01435512882368  0.162565336385657  0.0  -0.152875528688122  0.258696442895482  0.0

 |gravity> ruby euler_elliptic_10000_steps_sparse.rb | tail -3
 2.018682481674  0.155054729139203  0.0  -0.145810200248145  0.259252408016603  0.0
 2.01721343061819  0.157646408310245  0.0  -0.14824383417573  0.259064012737983  0.0
 2.01572003060918  0.160236187852851  0.0  -0.150680280478263  0.258872130993741  0.0
Dan: Well, hardly anything perhaps, but still something went wrong . . .

Carol: . . . yes, I spoke too soon. The points do some to be further separated from each other, but the last point from the new code doesn't quite reach the last of the many points that the old code printed.

Ah, of course! I should have thought about that. Off by one!

Erica: Off by one?

Carol: Yes, that's what we call it when you forget that Ruby, or C for that matter, is counting things starting from zero rather than from one. The first time we traverse the loop, the value of i is zero, the second time it is one. We want to print out the results one out of ten times. This means that each time we have traversed the loop ten times, we print. After the tenth traversal, i = 9, since we started with i = 0. Here, I'll make the change, and call the file euler_elliptic_10000_steps_sparse_ok.rb:

   if i%10 == 9
     print(x, "  ", y, "  ", z, "  ")
     print(vx, "  ", vy, "  ", vz, "\n")
   end

Let me try again:

 |gravity> ruby euler_elliptic_10000_steps.rb | tail -3
 2.01466014781365  0.162047884550843  0.0  -0.152387493429476  0.258735730522888  0.0
 2.01450776032022  0.162306620281366  0.0  -0.152631496539003  0.258716104290758  0.0
 2.01435512882368  0.162565336385657  0.0  -0.152875528688122  0.258696442895482  0.0

 |gravity> ruby euler_elliptic_10000_steps_sparse_ok.rb | tail -3
 2.01736143096325  0.157387325301357  0.0  -0.148000345061228  0.259083008888045  0.0
 2.01587046711702  0.159977296376325  0.0  -0.150436507846502  0.258891476525706  0.0
 2.01435512882368  0.162565336385657  0.0  -0.152875528688122  0.258696442895482  0.0
Dan: Congratulations! I guess this is called off by zero? The last points are indeed identical.

Erica: I'd call it on target. And presumably the output file is ten times smaller?

Carol: Easy to check:

 |gravity> ruby euler_elliptic_10000_steps.rb | wc
   10001   60006  854128

 |gravity> ruby euler_elliptic_10000_steps_sparse_ok.rb | wc
    1001    6006   85445
So it is; from more than 10,000 lines back to 1001 lines, as before.

9.3. Better and Better

Dan: Resulting in a sparser figure, I hope?

Carol: That's the idea!

 |gravity> ruby euler_elliptic_10000_steps_sparse_ok.rb > euler_elliptic_10000_steps_sparse_ok.out
Here is the plot, in fig.
24.

Erica: And yes, you can again see the individual steps on the left-hand side.

Carol: It will be easy now to take shorter and shorter steps. Starting from euler_elliptic_10000_steps_sparse_ok.rb, which we used before, I'll make a file euler_elliptic_100000_steps_sparse_ok.rb, with only two lines different: the dt value and the if statement:

 dt = 0.0001

   if i%100 == 99
     print(x, "  ", y, "  ", z, "  ")
     print(vx, "  ", vy, "  ", vz, "\n")
   end

Similarly, in ruby euler_elliptic_1000000_steps_sparse_ok.rb we have

 dt = 0.00001

   if i%1000 == 999
     print(x, "  ", y, "  ", z, "  ")
     print(vx, "  ", vy, "  ", vz, "\n")
   end

Figure 24: Seventh attempt at integrating the two-body problem: sparse output

Figure 25: Eighth attempt at integrating the two-body problem: starting to converge.

Figure 26: Ninth attempt at integrating the two-body problem: finally converging.

I'll run the codes and show the plots, in fig. 25 and fig. 26, respectively.

 |gravity> ruby euler_elliptic_100000_steps_sparse_ok.rb > euler_elliptic_100000_steps_sparse_ok.out

 |gravity> ruby euler_elliptic_1000000_steps_sparse_ok.rb > euler_elliptic_1000000_steps_sparse_ok.out

9.4. A Print Method

Dan: Beautiful. A real ellipse! Newton would have been delighted to see this. The poor guy; he had to do everything by hand.

Carol: But at least he was not spending time debugging . . .

Erica: . . . or answering email. Those were the days!

Dan: I'm not completely clear about the asymmetry in the final figure. At the left, the points are much further apart. Because all points are equally spaced in time, this means that the motion is much faster, right?

Erica: Right! Remember, what is plotted is the one-body system that stands in for the solution of the two-body problem.

Carol: You know, I would find it really helpful if we could plot the orbits of both particles separately. So far, it has made our life easier to use the coordinates, since we could choose the c.o.m. coordinate system in which by definition, so we only had to plot . But how about going back to our original coordinate system, plotting the full coordinates, one for each particle separately?

Erica: That can't be hard. We just have to look at the summary we wrote of our derivations, where was that, ah yes, Eq. (36) is what we need.

Dan: And we derived those in Eqs. (22) and (24), because Carol insisted we do so.

Carol: I'm glad I did! You see, it often pays off, if you're curious. Pure science quickly leads to applied science.

Dan: You always have such a grandiose way to put yourself on the map! But in this case you're right, we do have an application. Now how do we do this . . . oh, it's easy really: we can just plot the positions of both particles, in any order we like. As long as we plot all the points, the orbits will show up in the end.

Erica: And it is most natural to plot the position of each particle in turn, while traversing the loop once. All we have to do is to make the print statements a bit more complicated.

Carol: But I don't like to do that twice, once before we enter the loop, and once inside the loop, toward the end. It's high time to define a method.

Dan: What's a method?

Carol: It's what is called a function in C or a subroutine in Fortran, a piece of code that can be called from elsewhere, perhaps using some arguments. Here, I'll show you. When you improve a code, rule number one is: try not to break what already works. This means: be careful, take it one step at a time.

In our case, this means: before trying to go to a new coordinate system, let us first implement the method idea in the old code, then check that the old code still gives the right result, and only then try to change coordinate systems.

So far, we have solved the one-body system, using the computer program in euler_elliptic_1000000_steps_sparse_ok.rb. I'll copy it to a new file euler_one_body.rb. Now I'm going to wrap the print statements for the one-body system into a method called print1:

 def print1(x,y,z,vx,vy,vz)
   print(x, "  ", y, "  ", z, "  ")
   print(vx, "  ", vy, "  ", vz, "\n")
 end

and I will invoke this method once at the beginning, just before entering the loop:

 print1(x,y,z,vx,vy,vz)
 1000000.times{|i|

and once at the end of each loop traversal:

   print1(x,y,z,vx,vy,vz) if i%1000 == 999

Dan: Wait a minute, shouldn't the if statement come in front?

Carol: in most languages, yes, but in Ruby you instead of writing:

   if a
     b
   end
you can also write

  b if a
if everything fits on one line, and then the end can be omitted.

Well, now this new code should give the same results as we had before:

 |gravity> ruby euler_one_body.rb > euler_one_body.out

Figure 27: Tenth attempt at integrating the two-body problem: check of 1-body output.

Erica: Sure looks the same.

Dan: If you really want to show that it's the same, why not print the last lines in each case?

Carol: Right, let's check that too:

 |gravity> ruby euler_elliptic_1000000_steps_sparse_ok.rb | tail -3
 0.496147378042769  -0.37881858244996  0.0  1.21129218162732  0.0849254022743251  0.0
 0.508159065963217  -0.377892709335516  0.0  1.19108982655975  0.100148843547868  0.0
 0.519970642634004  -0.376817992041834  0.0  1.17126787143698  0.114700879739653  0.0
 |gravity> ruby euler_one_body.rb | tail -3
 0.496147378042769  -0.37881858244996  0.0  1.21129218162732  0.0849254022743251  0.0
 0.508159065963217  -0.377892709335516  0.0  1.19108982655975  0.100148843547868  0.0
 0.519970642634004  -0.376817992041834  0.0  1.17126787143698  0.114700879739653  0.0
Dan: I'm happy. So now you're going to copy the code of
euler_one_body.rb to a new file called euler_two_body.rb . . .

9.5. From One Body to Two Bodies

Carol: You're reading my mind. All I have to do now is implement Eq. (36), and its time derivative, where positions are replaced by velocities:

 def print2(m1,m2,x,y,z,vx,vy,vz)
   mfrac1 = m1/(m1+m2)
   mfrac2 = m2/(m1+m2)
   print(-mfrac2*x, "  ", -mfrac2*y, "  ", -mfrac2*z, "  ")
   print(-mfrac2*vx, "  ", -mfrac2*vy, "  ", -mfrac2*vz, "\n")
   print(mfrac1*x, "  ", mfrac1*y, "  ", mfrac1*z, "  ")
   print(mfrac1*vx, "  ", mfrac1*vy, "  ", mfrac1*vz, "\n")
 end

Dan: And change print1 to print2.

Carol: Yes, that plus the fact that I now have to give two extra arguments, m1 and m2. In front of the loop this becomes:

 print2(m1,m2,x,y,z,vx,vy,vz)
 1000000.times{|i|

and at the end inside the loop:

   print2(m1,m2,x,y,z,vx,vy,vz) if i%1000 == 999

Erica: But . . . don't we have to specify somewhere what the two masses are?

Carol: Oops! Good point. So far we've been working in a system of units in which , and in the c.o.m. coordinates we never had to specify what each mass value was. But now we'd better write the mass values in the initial conditions.

Erica: And for consistency, we should insist that the sum of the masses remains unity, so we only have one value that we can freely choose. For example, once we choose a value for m1, the value for m2 is fixed to be m2 = 1 - m1.

Carol: That's easy to add. How about making the masses somewhat unequal, but not hugely so? That way we can still hope to see both orbits clearly. I'll make m1 = 0.6:

 m1 = 0.6
 m2 = 1 - m1

Dan: Given that we use the convention , there is really no need to divide by this quantity, in the method print2. In fact, there was no reason to introduce the variables mfrac1 and mfrac2 for the mass fractions that were assigned to each star. With the total mass being unity, the mass fraction in each star has exactly the same value as the mass of each star itself.

Erica: Yes, that is true. However, I prefer to keep print2 the way it is, just to make the physics clear. When you write mfrac1*vx, it is clear that you are dealing with a velocity, vx, that is multiplied by a mass fraction. If you were to write simply m1*vx, you would get the same numerical value, but the casual reader would get the impression that you are now working with a momentum, rather than a velocity.

Carol: I agree. I can see Dan's argument for writing a shorter and minimal version of print2, but I, too, prefer the longer version, for clarity.

Dan: Okay, I can see the point, though I myself would prefer brevity over clarity in this case. But since I'm outvoted here, let's leave it as it is. Can you show the whole program? I'm beginning to loose track now.

Carol: Here it is:

 include Math

 x = 1
 y = 0
 z = 0
 vx = 0
 vy = 0.5
 vz = 0
 dt = 0.00001

 m1 = 0.6
 m2 = 1 - m1

 def print2(m1,m2,x,y,z,vx,vy,vz)
   mfrac1 = m1/(m1+m2)
   mfrac2 = m2/(m1+m2)
   print(-mfrac2*x, "  ", -mfrac2*y, "  ", -mfrac2*z, "  ")
   print(-mfrac2*vx, "  ", -mfrac2*vy, "  ", -mfrac2*vz, "\n")
   print(mfrac1*x, "  ", mfrac1*y, "  ", mfrac1*z, "  ")
   print(mfrac1*vx, "  ", mfrac1*vy, "  ", mfrac1*vz, "\n")
 end

 print2(m1,m2,x,y,z,vx,vy,vz)
 1000000.times{|i|
   r2 = x*x + y*y + z*z
   r3 = r2 * sqrt(r2)
   ax = - x / r3
   ay = - y / r3
   az = - z / r3
   x += vx*dt
   y += vy*dt
   z += vz*dt
   vx += ax*dt
   vy += ay*dt
   vz += az*dt
   print2(m1,m2,x,y,z,vx,vy,vz) if i%1000 == 999
 }

And here is the output:

 |gravity> ruby euler_two_body.rb > euler_two_body.out

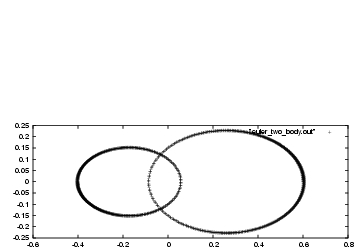

And the results are plotted in fig. 28

Figure 28: Eleventh attempt at integrating the two-body problem: check of 2-body output.

Erica: Beautiful!

Dan: Indeed. That makes everything a lot more concrete for me. So the bigger ellipse belongs to the particle with the smaller mass, m2, and the smaller ellipse is for the bigger one, m1.

Erica: And they always face each other from different sides with respect to the origin, .

Carol: For now, I take your word for it, but it sure would be nice to see all that actually happening. I mean, it would be great to see the particles orbiting each other in a movie.

Erica: Definitely. But before we go into that, I suggest we move up one step, from the first-order forward Euler algorithm to a second-order algorithm. Look, we're now using a whopping one million steps just to go around a simple ellipse a few times. Clearly, forward Euler is very inefficient.

Dan: I've been wondering about that. I agree. Let's get a better scheme first, but then it will be time to see a movie.
