Bob: Now it is really time to show off my fourth-order integrator.

Alice: Can you show me again the code?

Bob: Here it is:

   def rk4(dt)
     old_pos = pos
     a0 = acc
     @pos = old_pos + vel*0.5*dt + a0*0.125*dt*dt
     a1 = acc
     @pos = old_pos + vel*dt + a1*0.5*dt*dt
     a2 = acc
     @pos = old_pos + vel*dt + (a0+a1*2)*(1/6.0)*dt*dt
     @vel = vel + (a0+a1*4+a2)*(1/6.0)*dt
   end

Alice: That's quite a bit more complicated. I see coefficients of 1/6 and 1/3 and 2/3. How did you determine those?

Bob: I just looked them up in a book. There are several ways to choose those coefficients. Runge-Kutta formulas form a whole family, and the higher the order, the more choices there are for the coefficients. In addition, there are some extra simplifications that can be made in the case of a second order differential equation where there is no dependence on the first derivative.

Alice: As in the case of Newton's equation of motion, where the acceleration is dependent on the position, but not on the velocity.

Bob: Exactly. Here are the equations. They can be found in that famous compendium of equations, tables and graphs: Handbook of Mathematical Functions, by M. Abramowitz and I. A. Stegun, eds. [Dover, 1965]. You can even find the pages on the web now. Here is what I copied from a web page:

Alice: Quite a bit more complex than the second order one.

Bob: Yes, and of course it is written in a rather different form than the way I chose to implement it. I preferred to stay close to the same style in which I had written the leapfrog and second-order Runge Kutta. This means that I first had to rewrite the Abramowitz and Stegun expression.

4.2. Really Fourth Order?

Alice: Let's write it out specifically, just to check what you did. I know from experience how easy it is to make a mistake in these kinds of transformations.

Bob: So do I! Okay, the book starts with the differential equation:

whereas we want to apply it to Newton's equation, which in a similar notation would read

with the only difference that of course there is no specific time dependence in Newton's equations of gravity, so we only have

To make a connection with Abramowitz and Stegun, their x becomes our time t, their y becomes our position vector , and their f becomes our acceleration vector . Also, their becomes our velocity vector . Finally, their h is our time step dt.

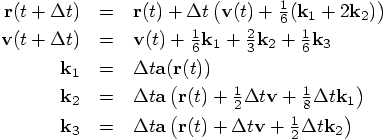

Alice: Let us rewrite their set of equations in terms of the dictionary you just provided. And instead of dt it is better to write , since dt is not an infinitesimal quantity here, but a finite time interval. This then gives us:

In order to make a connection with your code, we can define three variables , , and as follows, taking the right hand sides of the last three equations above, but without the factor:

Comparing this with the definitions of , , and , we can eliminate all values from the right hand side:

And indeed, these are exactly the three variables a0, a1, and a2, that are computed in your rk4 method.

We can now rewrite the first two of Abramowitz and Stegun's equations as:

And these correspond precisely to the last two lines in your rk4 method.

Bob: Yes, that was how I derived my code, but I must admit, I did not write it down as neatly and convincingly as you just did.

Alice: So yes, you have indeed implemented Abramowitz and Stegun's fourth-order Runge-Kutta scheme. But wait a minute, what you found here, equation 22.5.22, shows a right-hand side with a stated position error of order -- which would suggest that the scheme is only third-order accurate.

Bob: Hey, that is right. If you make smaller, the number of steps will go up according to , and therefore the total error for a given problem will grow proportionally to . This would indeed imply that this method is third-order. But that would be very unusual. In all text books I've seen, you mostly come across second-order and fourth-order Runge-Kuttas. While you certainly can construct a third-order version, I wouldn't have expected Abramowitz and Stegun to feature one. Besides, look at the last expression for the velocity. Doesn't that resemble Simpson's rule, suggesting fourth-order accuracy. I'm really puzzled now.

Alice: Could it be a misprint?

Bob: Anything is possible, though here that is not very likely. This is such a famous book, that you would expect the many readers to have debugged the book thoroughly.

Alice: Let's decide for ourselves what is true and what is not.

Bob: Yes. And either way, whatever the outcome, it will be a good exercise for the students. Let's first test it numerically.

Alice: Fine with me. But then I want to derive it analytically as well, to see whether we really can understand the behavior of the numerical results from first principles.

And hey, I just noticed that the expression for the velocity in equation 22.5.22 does not have any error estimate. For the scheme to be really fourth-order, not only should the error per step in the first line be of order , but the second line should also have an error of order . I want to see whether we can derive both facts, if true.

4.3. Comparing the Four Integrators

Bob: Whether those facts are true or not, that will be easy to figure out numerically. Let us start again with a time step of 0.001, for a duration of ten time units.

Alice: Just to compare, why don't you run them for all four schemes.

Bob: I am happy to do so. And while we are not sure yet whether our higher-order Runge-Kutta scheme is 3rd order or 4th order, let me continue to call it 4th order, since I've called it rk4 in my code. If it turns out that it is 3rd order, I'll go back and rename it to be rk3.

Alice: Fair enough.

Bob: Okay: forward Euler, leapfrog, 2nd order R-K, and hopefully-4th order R-K:

 |gravity> ruby integrator_driver2d.rb < euler.in
 dt = 0.001
 dt_dia = 10
 dt_out = 10
 dt_end = 10
 method = forward
 at time t = 0, after 0 steps :
   E_kin = 0.125 , E_pot =  -1 , E_tot = -0.875
              E_tot - E_init = 0
   (E_tot - E_init) / E_init =-0
 at time t = 10, after 10000 steps :
   E_kin = 0.0451 , E_pot =  -0.495 , E_tot = -0.45
              E_tot - E_init = 0.425
   (E_tot - E_init) / E_init =-0.486
   1.0000000000000000e+00
   2.0143551288236803e+00  1.6256533638564666e-01
  -1.5287552868811088e-01  2.5869644289548283e-01
Alice: Ah, this is the result from the forward Euler algorithm, because the fifth line of the output announces that this was the integration method used. As we have seen before, energy conservation has larger errors. We have an absolute total energy error of 0.425, and a relative change in total energy of -0.486. I see that you indeed used dt = 0.001 from what is echoed on the first line in the output. And yes, for these choices of initial conditions and time step size we had seen that things went pretty badly.

Bob: The leapfrog does better:

 |gravity> ruby integrator_driver2e.rb < euler.in
 dt = 0.001
 dt_dia = 10
 dt_out = 10
 dt_end = 10
 method = leapfrog
 at time t = 0, after 0 steps :
   E_kin = 0.125 , E_pot =  -1 , E_tot = -0.875
              E_tot - E_init = 0
   (E_tot - E_init) / E_init =-0
 at time t = 10, after 10000 steps :
   E_kin = 0.554 , E_pot =  -1.43 , E_tot = -0.875
              E_tot - E_init = 3.2e-07
   (E_tot - E_init) / E_init =-3.65e-07
   1.0000000000000000e+00
   5.9946121055215340e-01 -3.6090779482156415e-01
   1.0308896785838775e+00  2.1343145669114691e-01
Alice: Much better indeed, as we had seen before. A relative energy error of is great, an error much less than one in a million.

Bob: Time for second-order Runge-Kutta:

 |gravity> ruby integrator_driver2f.rb < euler.in
 dt = 0.001
 dt_dia = 10
 dt_out = 10
 dt_end = 10
 method = rk2
 at time t = 0, after 0 steps :
   E_kin = 0.125 , E_pot =  -1 , E_tot = -0.875
              E_tot - E_init = 0
   (E_tot - E_init) / E_init =-0
 at time t = 10, after 10000 steps :
   E_kin = 0.555 , E_pot =  -1.43 , E_tot = -0.875
              E_tot - E_init = 6.02e-05
   (E_tot - E_init) / E_init =-6.88e-05
   1.0000000000000000e+00
   5.9856491479183715e-01 -3.6183772788952318e-01
   1.0319067591346045e+00  2.1153690796461602e-01
Alice: Not as good as the leapfrog, but good enough. What I'm curious about is how your hopefully-fourth-order Runge-Kutta will behave.

Bob: Here is the answer:

 |gravity> ruby integrator_driver2g.rb < euler.in
 dt = 0.001
 dt_dia = 10
 dt_out = 10
 dt_end = 10
 method = rk4
 at time t = 0, after 0 steps :
   E_kin = 0.125 , E_pot =  -1 , E_tot = -0.875
              E_tot - E_init = 0
   (E_tot - E_init) / E_init =-0
 at time t = 10, after 10000 steps :
   E_kin = 0.554 , E_pot =  -1.43 , E_tot = -0.875
              E_tot - E_init = -2.46e-09
   (E_tot - E_init) / E_init =2.81e-09
   1.0000000000000000e+00
   5.9961758437074986e-01 -3.6063455639926667e-01
   1.0308068733946525e+00  2.1389536225475009e-01
Alice: What a difference! Not only do we have much better energy conservation, on the order of a few times , also the positional accuracy is already on the level of a few times , when we compare the output with our most accurate previous runs. And all that with hardly any waiting time.

Bob: Yes, I'm really glad I threw that integrator into the menu. The second-order Runge-Kutta doesn't fare as well as the leapfrog, at least for this problem, even though they are both second-order. But the hopefully-fourth-order Runge-Kutta wins hands down.

4.4. Fourth Order Runge-Kutta

Alice: Let's make the time step ten times smaller:

 |gravity> ruby integrator_driver2h.rb < euler.in
 dt = 0.0001
 dt_dia = 10
 dt_out = 10
 dt_end = 10
 method = rk4
 at time t = 0, after 0 steps :
   E_kin = 0.125 , E_pot =  -1 , E_tot = -0.875
              E_tot - E_init = 0
   (E_tot - E_init) / E_init =-0
 at time t = 10, after 100000 steps :
   E_kin = 0.554 , E_pot =  -1.43 , E_tot = -0.875
              E_tot - E_init = -8.33e-14
   (E_tot - E_init) / E_init =9.52e-14
   1.0000000000000000e+00
   5.9961755488723312e-01 -3.6063458344261029e-01
   1.0308069102701605e+00  2.1389530419780176e-01
Bob: What a charm! Essentially machine accuracy. This makes it pretty obvious that fourth-order integrators win out hands down, in problems like this, over second-order integrators. Higher order integrators may be even faster, but that is something we can explore later.

Alice: Well done. And, by the way, this does suggest that the scheme that you copied from that book is indeed fourth-order. It almost seems better than fourth order.

Bob: Let me try a far larger time step, but a much shorter duration, so that we don't have to integrate over a complicated orbit. How about these two choices. First:

 |gravity> ruby integrator_driver2i.rb < euler.in
 dt = 0.1
 dt_dia = 0.1
 dt_out = 0.1
 dt_end = 0.1
 method = rk4
 at time t = 0, after 0 steps :
   E_kin = 0.125 , E_pot =  -1 , E_tot = -0.875
              E_tot - E_init = 0
   (E_tot - E_init) / E_init =-0
 at time t = 0.1, after 1 steps :
   E_kin = 0.129 , E_pot =  -1 , E_tot = -0.875
              E_tot - E_init = 1.75e-08
   (E_tot - E_init) / E_init =-2.01e-08
   1.0000000000000000e+00
   9.9499478923153439e-01  4.9916431937376750e-02
  -1.0020915515250550e-01  4.9748795077019681e-01
And then:

 |gravity> ruby integrator_driver2j.rb < euler.in
 dt = 0.01
 dt_dia = 0.1
 dt_out = 0.1
 dt_end = 0.1
 method = rk4
 at time t = 0, after 0 steps :
   E_kin = 0.125 , E_pot =  -1 , E_tot = -0.875
              E_tot - E_init = 0
   (E_tot - E_init) / E_init =-0
 at time t = 0.1, after 10 steps :
   E_kin = 0.129 , E_pot =  -1 , E_tot = -0.875
              E_tot - E_init = 1.79e-12
   (E_tot - E_init) / E_init =-2.04e-12
   1.0000000000000000e+00
   9.9499478009063858e-01  4.9916426216739009e-02
  -1.0020902861389222e-01  4.9748796005932194e-01
Alice: The time step went down by a factor of 10, and the energy conservation got better by a factor of almost exactly . We really seem to have a fourth order integration scheme.

Bob: This proves it. And I can keep the name rk4, since it lives up to its claim. Good!

Alice: At least it comes close to living up to its name, and it sort-of proves it.

4.5. Snap, Crackle, and Pop

Bob: What do you mean with `comes close'? What more proof would you like to have?

Alice: I would still be happier if I could really prove it, with pen and paper, rather than through the plausibility of numerical experimentation.

Bob: Go ahead, if you like!

Alice: Let us take your implementation

   def rk4(dt)
     old_pos = pos
     a0 = acc
     @pos = old_pos + vel*0.5*dt + a0*0.125*dt*dt
     a1 = acc
     @pos = old_pos + vel*dt + a1*0.5*dt*dt
     a2 = acc
     @pos = old_pos + vel*dt + (a0+a1*2)*(1/6.0)*dt*dt
     @vel = vel + (a0+a1*4+a2)*(1/6.0)*dt
   end

and let us determine analytically what the first five terms in a Taylor series in dt look like. We can then see directly whether the error term is proportional to , as the book claims, or , as our calculations indicate.

To start with, let us look at your variable a2, which is the acceleration after a time step dt, starting from an initial acceleration a0. A Taylor expansion can approximate a2 as:

where all the derivatives are understood to be evaluated at the same time as , namely at the beginning of our time step.

Bob: The first derivative of the acceleration, , is sometimes called the jerk. How about the following notation:

Alice: Fine with me. I believe the term `jerk' has crept into the literature relatively recently, probably originally as a pun. If a car or train changes acceleration relatively quickly you experience not a smoothly accelerating or decelerating motion, but instead a rather `jerky' one.

Bob: It may be more difficult to come up with terms for the unevenness in the jerk.

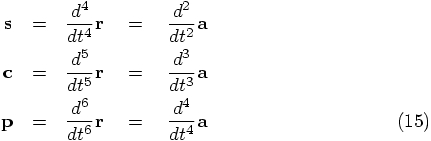

Alice: Actually, I saw somewhere that someone had used the words snap, crackle, and pop, to describe the next three terms.

Bob: As in the rice crispies? Now that will confuse astronomers who did not grow up in the United States! If they haven't seen the rice crispy commercials, they will have no clue why we would use those names. And come to think of it, I don't have much of a clue yet either.

Figure 1: Snap, Crackle, and Pop

Alice: Ah, but the point is that the names of these three cheerful characters lend themselves quite well to describe more-than-jerky behavior. After all, the popping of a rice crispy is a rather sudden change of state.

Bob: Okay, now I get the drift of the argument. A sudden snap comes to mind, as a change in jerk. And what changes its state more suddenly than a snap? Well, perhaps something that crackles, although that is pushing it a bit. But a pop is certainly a good word for something that changes high derivatives of positions in a substantial way!

4.6. An Attempt at an Analytical Proof

Alice: Okay, let's make it official:

Which turns my earlier equation into:

Bob: Much more readable.

Alice: And your other variable a1, which indicates the acceleration after only half a time step, now becomes:

Bob: Ah, and now we can evaluate the last two lines in my rk4 method:

     @pos = old_pos + vel*dt + (a0+a1*2)*(1/6.0)*dt*dt
     @vel = vel + (a0+a1*4+a2)*(1/6.0)*dt

Alice: Yes. These two lines translate to:

Upon substitution, the first line becomes:

And the second line becomes:

Bob: Very nice. In both cases the terms up to are perfectly correct, and the error starts in the term, where the Taylor series coefficient would have been . So the leading error terms are:

This proves that the rk4 Runge-Kutta method is truly fourth-order, and that there was a typo in Abramowitz and Stegun.

Alice: Or so it seems. But I must admit, I'm not completely comfortable.

4.7. Shocked

Bob: Boy, you're not easy to please! I was ready to declare victory when we had our numerical proof, and you convinced me to do the additional work of doing an analytical check. If it were up to me, I would believe numerics over analytics, any day. Seeing is believing, the proof is in the pudding, and all that.

Alice: Well, it really is better to have both a numerical demonstration and an analytical proof. It is just too easy to be fooled by coincidences or special cases, in numerical demonstrations. And at the same time it is also easy to make a mistake in doing analytical checks. So I think it is only wise to do both, especially with something so fundamental as an N-body integrator.

And I'm glad we did. But something doesn't feel quite right. Let me just review what we have done. We first expanded the orbit in a Taylor series, writing everything as a function of time. Then we showed that the orbit obeyed the equations of motion, and . . . .

Bob: . . . and then you looked shocked.

Alice: Not only do I look shocked, I am shocked! How could we make such a stupid mistake!?!

Bob: I beg your pardon?

Alice: There is something quite wrong with the Taylor series I wrote down in Eq. (13).

Bob: I looks like a perfectly fine Taylor series to me. All the coefficients are correct, and each next term is a higher derivative of the acceleration. What could possibly be wrong with it?

Alice: Formally it looks right, yes, that is exactly what is so misleading about it. But it is dead wrong.

Bob: Give me a hint.

Alice: Here is the hint. This Taylor series is formally correct, alright, for the case where you really know the function on the left hand side, and you really know all the derivatives on the right hand side. In that case, what you leave out is really fifth-order in .

Bob: So?

Alice: The problem is, we don't have such idealized information. Look at Eq. (16), or no, even better, look at Eq. (17).

Bob: I must be missing something. Here is Eq. (17) again:

It still looks perfectly right to me.

Alice: Yes, formally, true. But where do we apply it to? That's the problem. Let us recall how we actually compute . Here is your implementation of rk4 again:

   def rk4(dt)
     old_pos = pos
     a0 = acc
     @pos = old_pos + vel*0.5*dt + a0*0.125*dt*dt
     a1 = acc
     @pos = old_pos + vel*dt + a1*0.5*dt*dt
     a2 = acc
     @pos = old_pos + vel*dt + (a0+a1*2)*(1/6.0)*dt*dt
     @vel = vel + (a0+a1*4+a2)*(1/6.0)*dt
   end

Now tell me, how accurate is this expression for , or in the terms of the code, for a1

Bob: It is based on the position calculated in the third line of the body of the code, which is second order accurate in dt. So this means that a1 must be second-order accurate at this point. But that's okay, since a2 is already higher-order accurate, since it uses the information of a1 which was used to construct a better approximation for the position, in the fifth line of the code. And then the next line presumably gives an even better approximation. My guess would be that, while a1 is second-order accurate in dt, a2 is third-order accurate, and the next acceleration evaluation, at the beginning of the next step, will then be fourth-order accurate; that will be a0 in the following round. This is the whole point of a Runge-Kutta approach: you bootstrap your way up to the required accuracy.

Alice: Yes, I agree with all that, but that is far more than we need right now. Let's just stick with a1, and only a1. It was second-order accurate in dt, you just said. Now how in the world can a second-order accurate formula give any information in a comparison with four subsequent derivatives in Eq. (17) ???

Bob: Aaaaah, now I see what you are driving at. Well, I suppose it can't.

Alice: And similarly, your guess was that a2 was only third-order accurate, right? So it does not make sense to require it to fit snugly up to fourth-order in Eq. (16), which is the expression we started with, Eq. (13).

Bob: Well, if you put it that way, I must admit, no, that would not make sense. How tricky!

Alice: How tricky indeed! I was fully convinced that we were doing the right thing.

Bob: So was I. How dangerous, to rely on formal expressions!

Alice: And now that we have spotted the fallacy in our reasoning, we can see what we should have done: in Eq. (13), we should have expanded not only the right-hand side, but also the left-hand side, given that there are approximations involved there as well. Only after doing that, can we equate both sides in all honesty!

Bob: Yes, that is the only way, that much is clear now. Okay, you've convinced me. We really should keep track of all the approximations involved.

Alice: Now let's do it!
